[github action] github action 간단한 예제

github action 간단한 예제

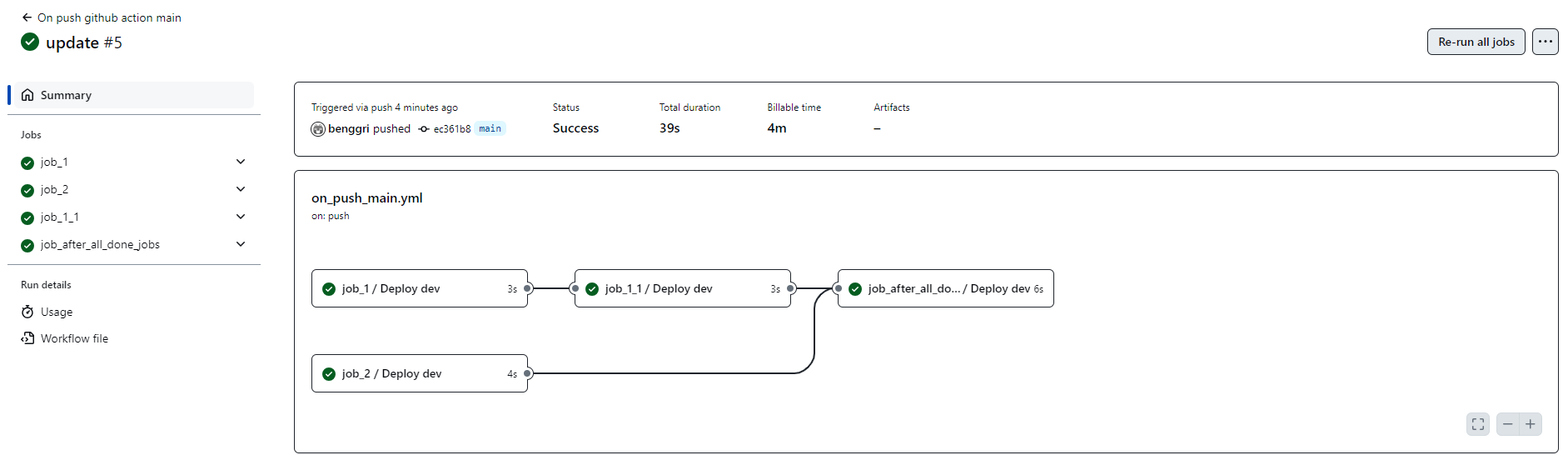

최종적으로 만들어 볼 github action 의 결과입니다.



폴더와 파일 구성

작업에 필요한 폴더와 파일 목록입니다.

Project Folder
|_ .github
  |_ workflows
    |_ job_1.yml
    |_ job_1_1.yml
    |_ job_2.yml
    |_ job_after_all_done_jobs.yml
    |_ on_push_action.yml



on_push_action.yml 에서 job_1.yml, job_1_1.yml, job_2.yml, job_after_all_done_jobs.yml 파일을 호출하는 형태로 구성됩니다.



파일 내용

job_1.yml

name: Job 1

on:
  workflow_call:
    inputs:
      environment:
        required: true
        type: string
    secrets:
      environment:
        required: true

jobs:
  deploy:
    name: Deploy ${{ inputs.environment }}
    runs-on: ubuntu-latest
    environment: ${{ inputs.environment }}
    steps:
      - name: Checkout
        uses: actions/checkout@v3
        with:
          ref: main # branch 명
      - name: github sha ${{ github.sha }}
        run: |-
          echo ${{ github.sha }}
      - name: Execute jobs inputs ${{ inputs.environment }}
        run: |-
          echo ${{ inputs.environment }}
      - name: Execute jobs secrets ${{ secrets.environment }}
        run: |-
          echo ${{ secrets.environment }}



job_1_1.yml

name: Job 1-1

on:
  workflow_call:
    inputs:
      environment:
        required: true
        type: string
    secrets:
      environment:
        required: true

jobs:
  deploy:
    name: Deploy ${{ inputs.environment }}
    runs-on: ubuntu-latest
    environment: ${{ inputs.environment }}
    steps:
      - name: Checkout
        uses: actions/checkout@v3
        with:
          ref: main # branch 명
      - name: github sha ${{ github.sha }}
        run: |-
          echo ${{ github.sha }}
      - name: Execute jobs inputs ${{ inputs.environment }}
        run: |-
          echo ${{ inputs.environment }}
      - name: Execute jobs secrets ${{ secrets.environment }}
        run: |-
          echo ${{ secrets.environment }}



job_2.yml

name: Job 2

on:
  workflow_call:
    inputs:
      environment:
        required: true
        type: string
    secrets:
      environment:
        required: true

jobs:
  deploy:
    name: Deploy ${{ inputs.environment }}
    runs-on: ubuntu-latest
    environment: ${{ inputs.environment }}
    steps:
      - name: Checkout
        uses: actions/checkout@v3
        with:
          ref: main # branch 명
      - name: github sha ${{ github.sha }}
        run: |-
          echo ${{ github.sha }}
      - name: Execute jobs inputs ${{ inputs.environment }}
        run: |-
          echo ${{ inputs.environment }}
      - name: Execute jobs secrets ${{ secrets.environment }}
        run: |-
          echo ${{ secrets.environment }}



job_after_all_done_jobs.yml

name: After all done jobs

on:
  workflow_call:
    inputs:
      environment:
        required: true
        type: string
    secrets:
      environment:
        required: true

jobs:
  deploy:
    name: Deploy ${{ inputs.environment }}
    runs-on: ubuntu-latest
    environment: ${{ inputs.environment }}
    steps:
      - name: Checkout
        uses: actions/checkout@v3
        with:
          ref: main # branch 명
      - name: github sha ${{ github.sha }}
        run: |-
          echo ${{ github.sha }}
      - name: Execute jobs inputs ${{ inputs.environment }}
        run: |-
          echo ${{ inputs.environment }}
      - name: Execute jobs secrets ${{ secrets.environment }}
        run: |-
          echo ${{ secrets.environment }}



on_push_action.yml

name: On push github action

on:
  push:
    branches: ["main"]

jobs:
  job_1:
    uses: ./.github/workflows/job_1.yml
    with:
      environment: dev
    secrets:
      environment: dev
  job_1_1:
    uses: ./.github/workflows/job_1_1.yml
    needs: job_1
    with:
      environment: dev
    secrets:
      environment: dev
  job_2:
    uses: ./.github/workflows/job_2.yml
    with:
      environment: dev
    secrets:
      environment: dev
  job_after_all_done_jobs:
    uses: ./.github/workflows/job_after_all_done_jobs.yml
    needs: [job_1, job_1_1, job_2]
    with:
      environment: dev
    secrets:
      environment: dev



직접 실행해보시면 github.sha의 값이 모든 job에서 동일하게 나오는 것을 보실 수 있습니다.

(github.sha는 github context를 보시면 되겠습니다.)

활용방법은 다양할 것 같습니다.

그럼 이만.

참고자료

https://docs.github.com/en/actions/learn-github-actions/contexts

https://docs.github.com/en/actions/learn-github-actions/contexts#github-context
